Technical Drawing Templates (Set of 4)

Paul Brothers

Key Features

Comprehensive Set: You'll find templates for ellipses, circles, squares, and a combination template, ensuring that you have the tools required to create precise and detailed drawings in various fields.

Precision and Accuracy: The Isomars Technical Drawing Templates are engineered to provide the utmost precision in your work. Whether you're sketching geometric shapes, plotting engineering diagrams, or creating architectural plans, these templates ensure that your lines and curves are perfectly executed.

Translucent Clarity: Crafted from rigid translucent orange plastic, these templates offer clarity and visibility. You can easily align them with your drawing surface, allowing you to visualize and execute your designs with ease and confidence.

Product Specifications

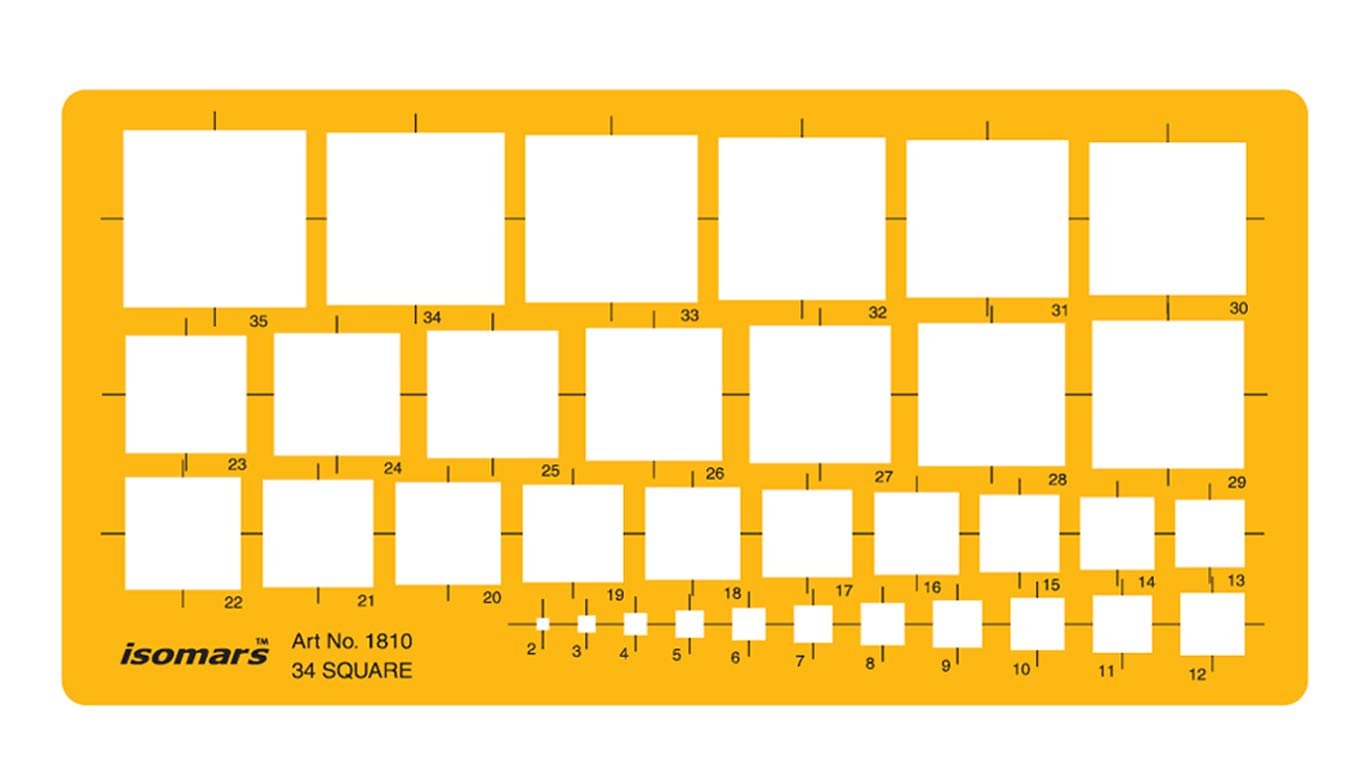

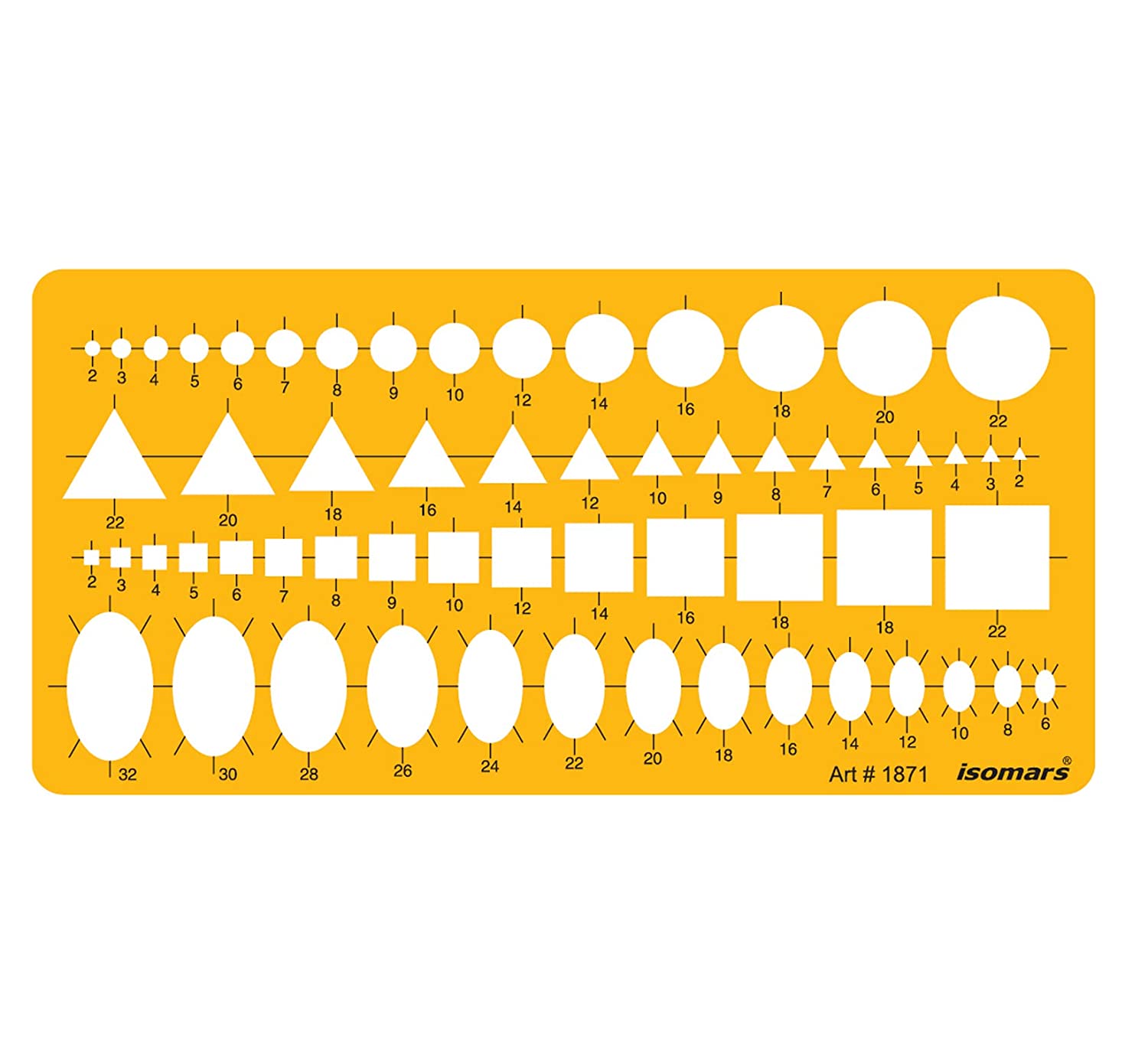

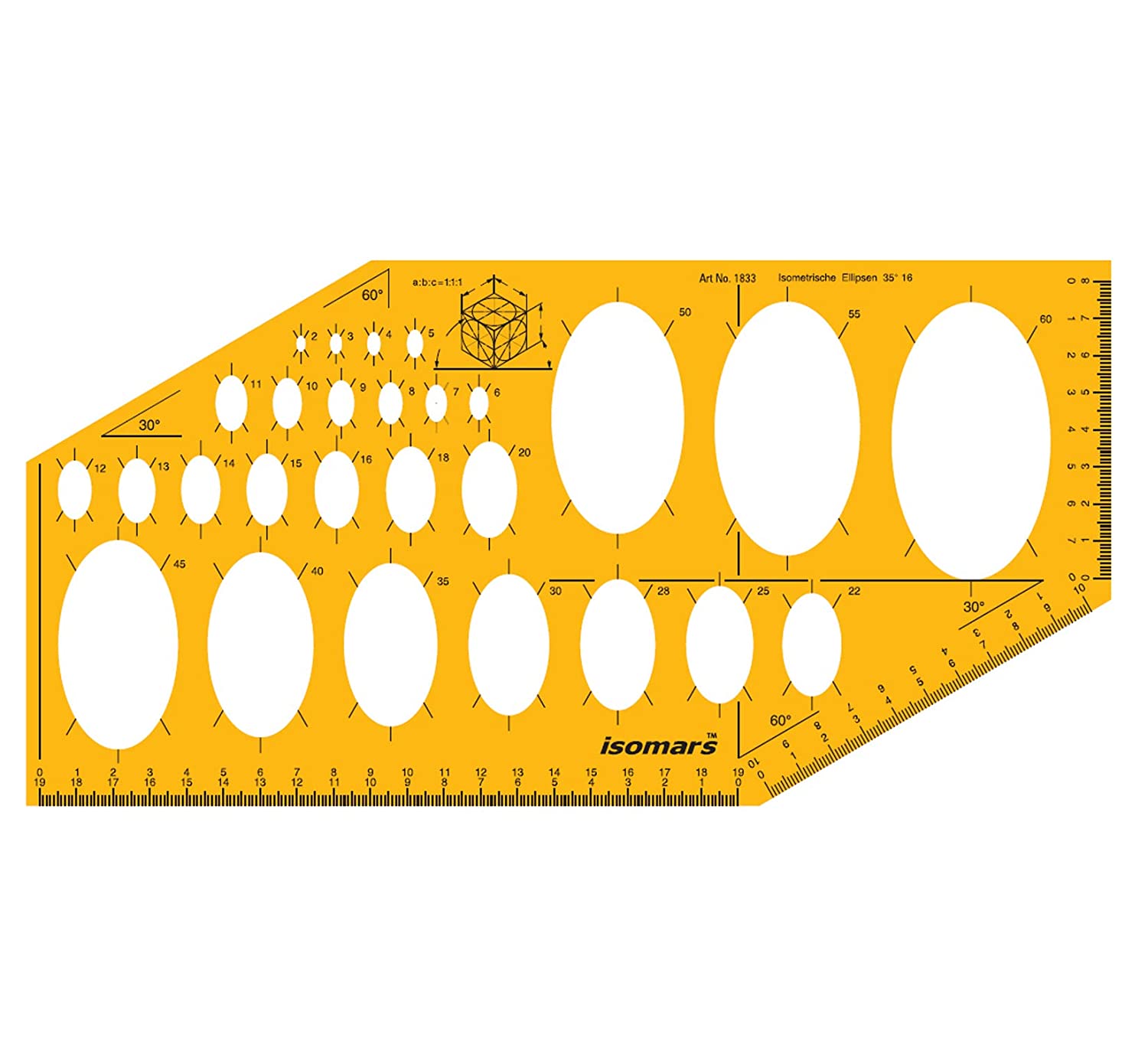

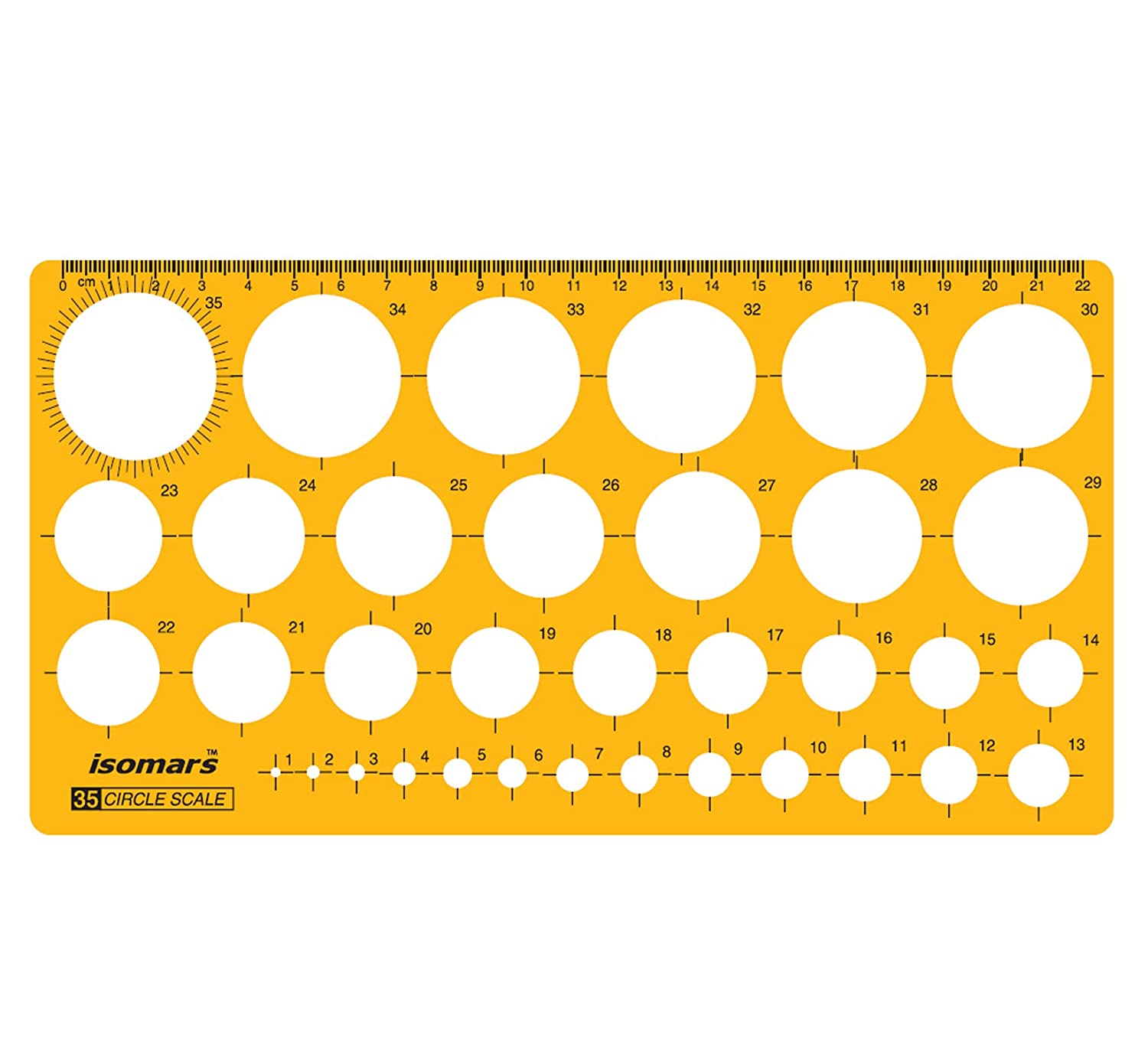

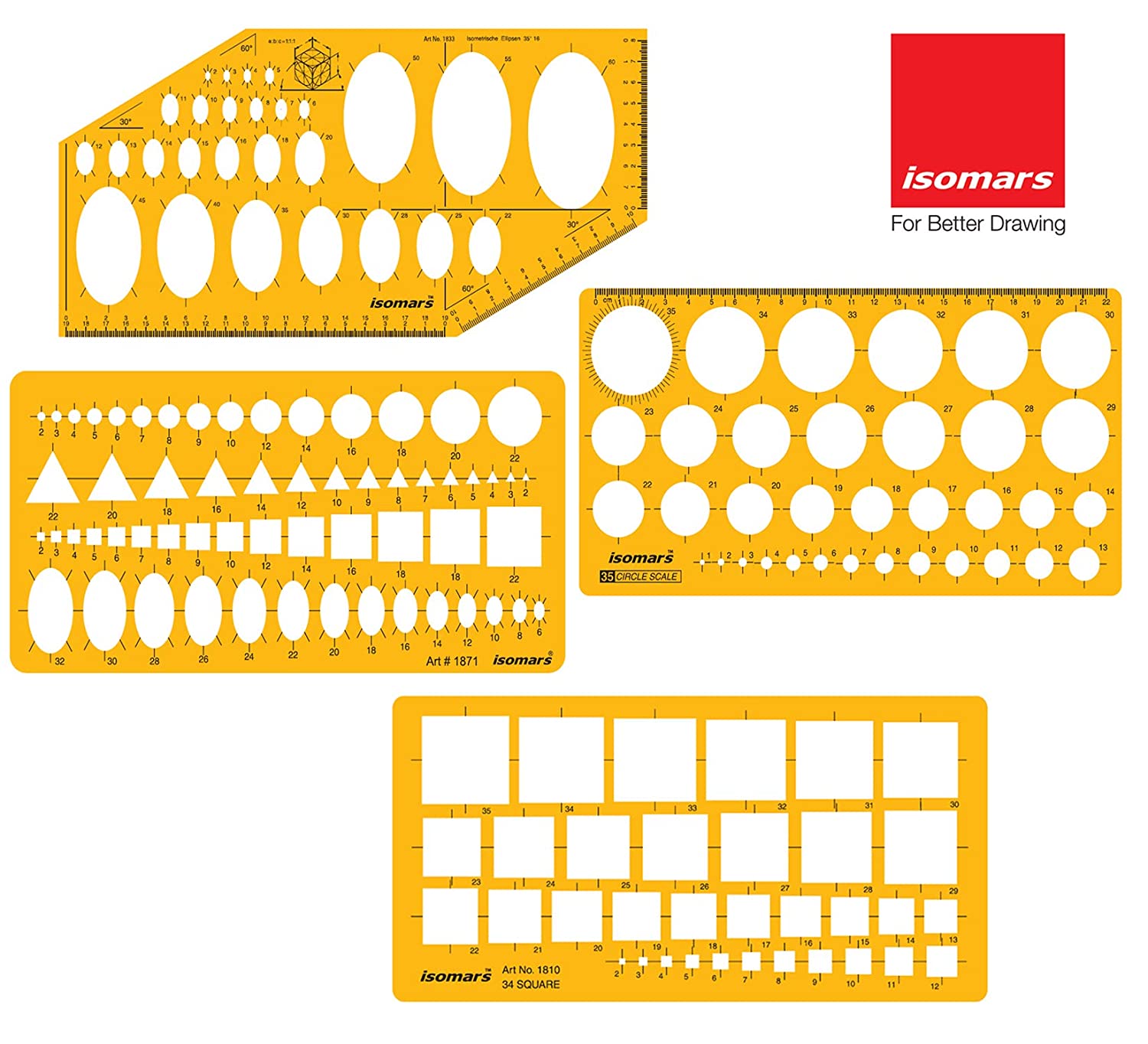

  • Set of 4 Templates: Ellipses, Circles, Squares, and Combination
  • Material: Rigid Translucent Orange Plastic
  • Thickness: 1.5mm
  • Weight: 150gm

Whether you're working on engineering schematics, architectural plans, or any project that demands technical precision, these templates are your trusted companions for achieving impeccable results. Design with confidence, precision, and the assurance of unparalleled accuracy.
