Isomars Axolipse Isometric Projection Stencil

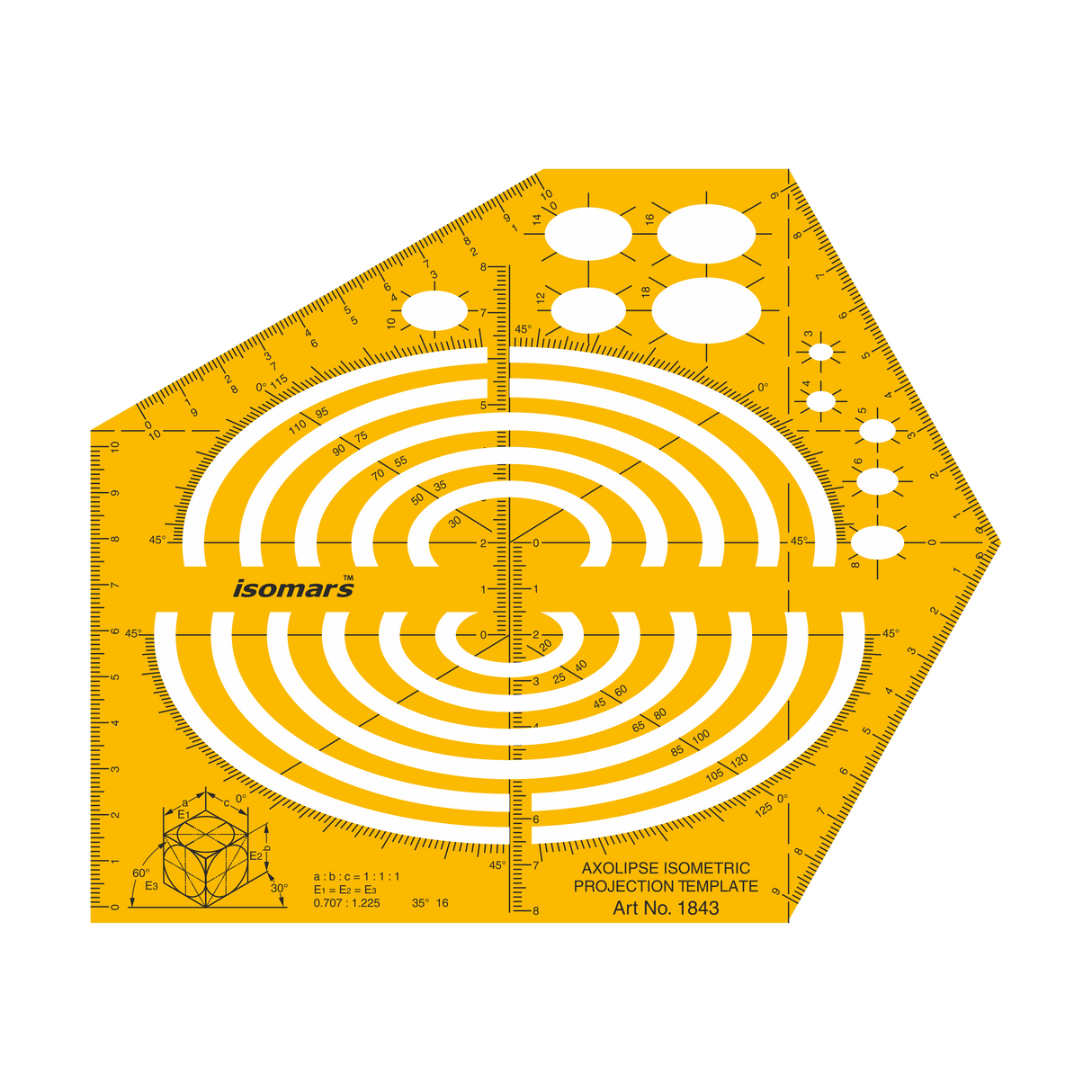

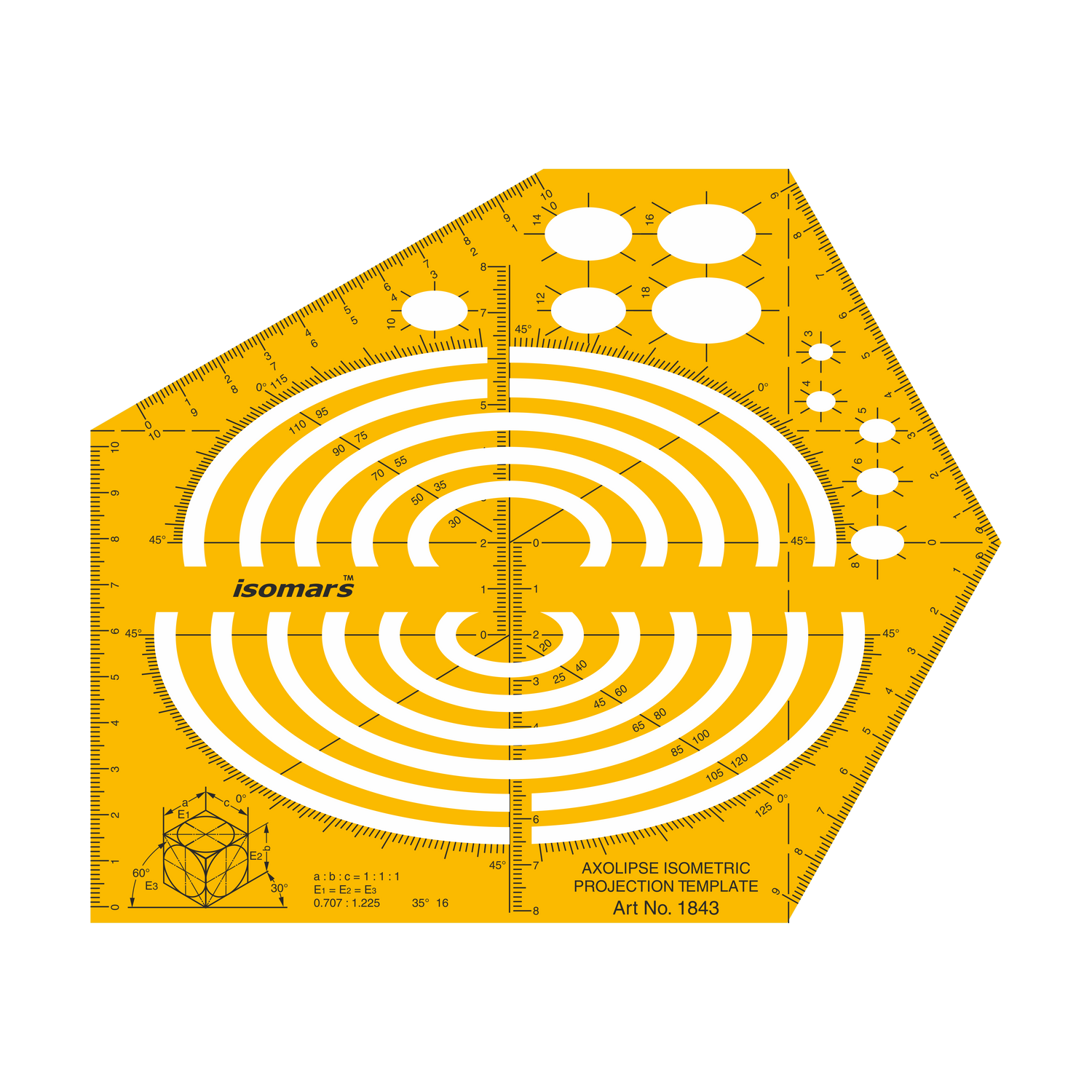

Elevate your technical drawing capabilities with the Isomars Axolipse Isometric Projection Template, an essential tool for engineers, architects, and technical illustrators. This precision-engineered stencil features comprehensive measurement scales and carefully calibrated curves for creating accurate isometric projections. The template includes multiple circular guides, angular measurements from 0 to 120 degrees, and detailed grid markings for precise dimensional control. Crafted in high-visibility yellow for easy reading, this professional-grade template helps you achieve perfect isometric drawings with consistent 30-degree angles and proportionate measurements. The template incorporates specialised ellipse guides and standardised measurement ratios (a:b:c = 1:1:1), making it invaluable for technical documentation, engineering designs, and architectural visualisations. Its durable construction ensures long-lasting performance while maintaining accuracy in your technical drawings.

About this item

• PROFESSIONAL TEMPLATE: High-quality isometric projection template designed for technical drawing and engineering applications
• PRECISE MEASUREMENTS: Features comprehensive angle measurements from 0-120 degrees with clear markings for accurate technical drawings
• VERSATILE DESIGN: Multiple circular and linear measurement scales allow for diverse drawing applications and detailed projections
• DURABLE MATERIAL: Constructed with sturdy, transparent material for long-lasting use and clear visibility of underlying drawings
• COMPREHENSIVE GUIDE: Includes standard isometric ratio (a:b:c = 1:1:1) and projection angles marked at 30°, 45°, and other key measurements
